1TJ1B-15025E2R01

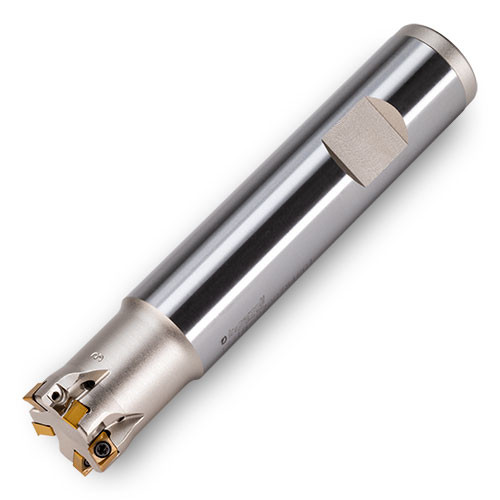

Indexable End Mill; 1-1/2″ Dia. × 0.14″ LOC × 1-1/2″ Shank Dia. × 5-1/2″ OAL × 1-3/4″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Usable Length (LU) | 1-3/4″ |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 10 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.14″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5-1/2″ | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Protruding Length (LPR) | 2-1/2″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corner: .008″ .015″ .031″ R & Hi-Feed | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.819
