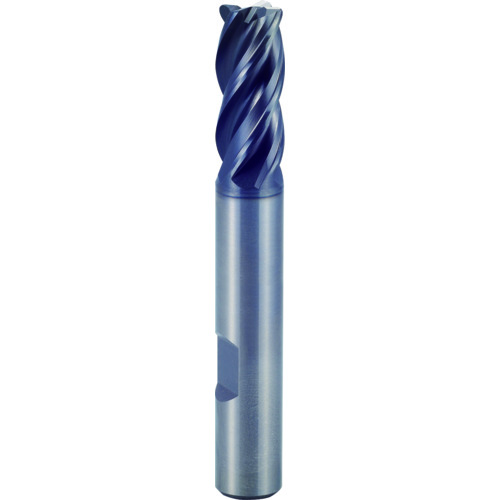

Corner Radius End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; Y-Coating ; Series UGMF71
SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 0.06″ RE ; 4 FL ; Carbide ; AlCrN ; Series UGMF71
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 3-1/2″ | Tool Type | 4 Flute Standard Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | UGMF71 |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
