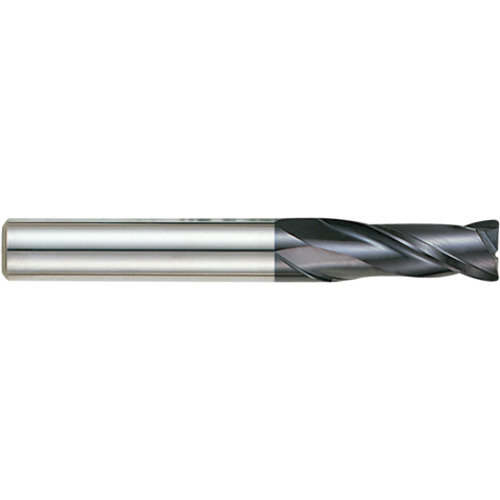

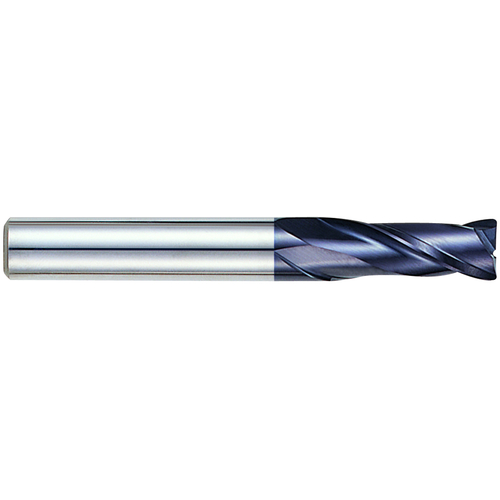

Corner Radius End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; ALTiN ; Series EM636
SQ End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 0.02″ RE ; 2 FL ; Carbide ; AlTiN ; Series EM636
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Carbide, 2 Flute Stub Length Corner Radius |
| Overall Length (OAL) | 3″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | EM636 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.375
Package Width
1/0/1900 15:00
Package Height
0.625
Package Weight
0.081
