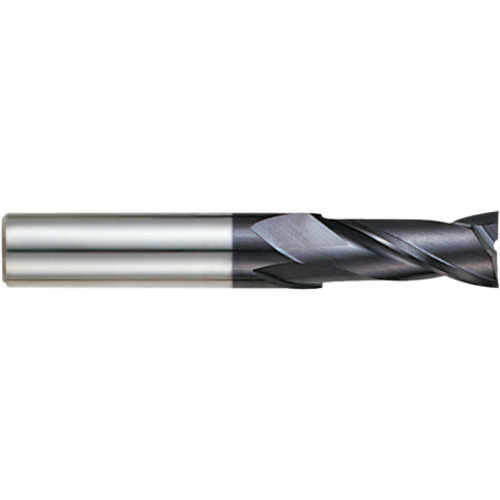

Square End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 2 FL ; Carbide ; ALTiN ; Series EM206
SQ End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 2 FL ; Carbide ; AlTiN ; Series EM206
| Cutting Diameter (DC) | 3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Tool Type | 2 Flute 30 Degrees Helix |
| Overall Length (OAL) | 5″ | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | EM206 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.5
Package Width
1/1/1900 6:00
Package Height
1.25
Package Weight
0.936
