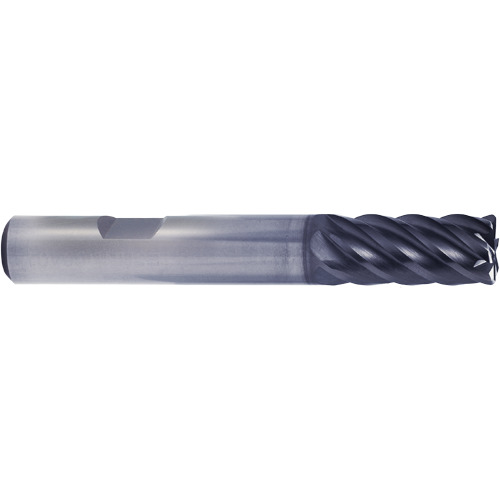

Corner Radius End Mill; 5/8″ Dia. × 3″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 6 FL ; Carbide ; Y-Coating ; Series UGMG23
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 5″ | Tool Type | 6 Flute Standard Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Series/List # | UGMG23 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6
Package Width
1
Package Height
1
Package Weight
0.706
