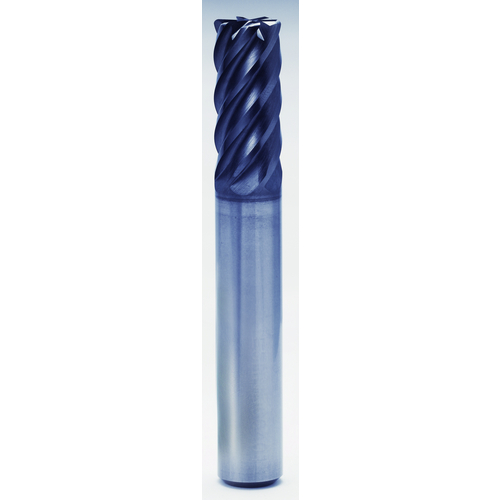

Corner Radius End Mill; 5/16″ Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 6 FL ; Carbide ; Y-Coating ; Series UGMG22
SQ End Mill; 5/16″ Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 0.015″ RE ; 6 FL ; Carbide ; AlCrN ; Series UGMG22
| Cutting Diameter (DC) | 5/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | 6 Flute Standard Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Series/List # | UGMG22 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.101
