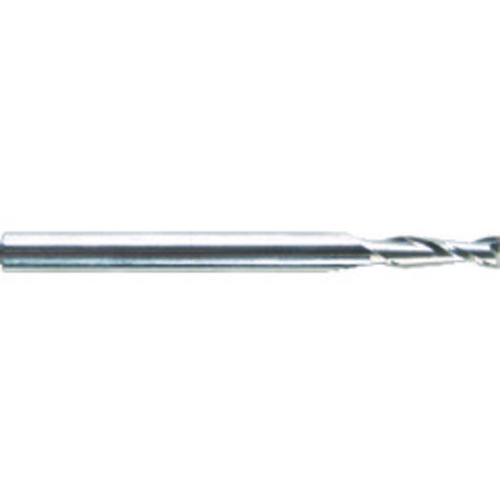

.120 Dia. × 1-1/2 Overall Length 2-Flute Square End Solid Carbide SE End Mill-Round Shank-Center Cut-Uncoated Series/List #5914
SQ End Mill; 0.12″ Dia. × 0.18″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0″ RE ; 2 FL ; 0.18″ LBS ; Carbide ; Bright ; Series 5914
| Cutting Diameter (DC) | 0.12″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 0.18″ | Tool Type | Miniature End Mill |
| Overall Length (OAL) | 1-1/2″ | Length Group | 0 |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Bright | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.12″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5914 |
| End Shape | Square | Trade Name | NANO CUT |
| Usable Length (LU) | 0.18″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.03
