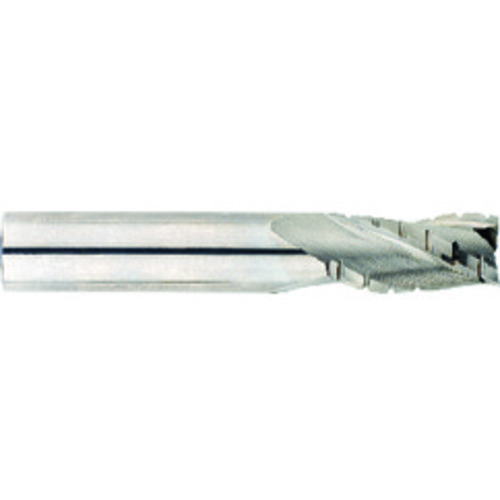

1/8″ Dia. × 1/8″ Shank × 1/2″ DOC × 1-1/2″ OAL Carbide 3 Flute 30° Helix End Mill Series/List #5928
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.005″ - 0.01″ RE ; 3 FL ; Carbide ; Uncoated ; Series 5928
| Cutting Diameter (DC) | 1/8″ | Tool Type | Single End |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | Regular |
| Depth of Cut Maximum (APMX) | 1/2″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1-1/2″ | Style | Roughing/Finishing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 5928 |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ - 0.01″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 1/2″ | Center Cutting | Yes |
| Corner Radius (RE) | 0.005″ - 0.01″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.02
