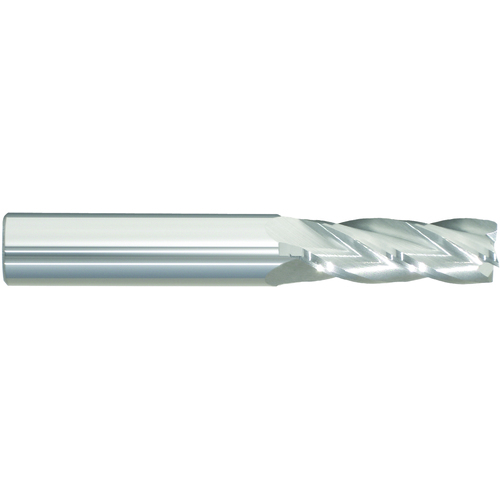

1/32″ Dia. × 1/8″ Shank × 1/16″ DOC × 1-1/2″ OAL Carbide 4 Flute 30° Helix End Mill Series/List #5975
| Cutting Diameter (DC) | 1/32″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/16″ |
| Depth of Cut Maximum (APMX) | 1/16″ | Tool Type | Single End |
| Overall Length (OAL) | 1-1/2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.03125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5975 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.02
