5959T 9.00MM × 10MM 2FL

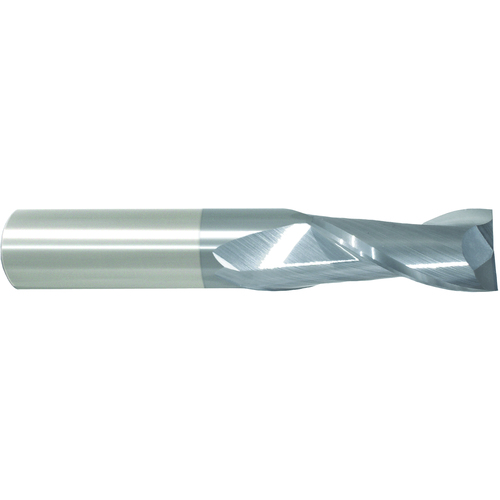

SQ End Mill; 9 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 70 mm OAL ; 2 FL ; 22 mm LBS ; Carbide ; AlTiN ; Series 5959T
| Cutting Diameter (DC) | 9 mm | Usable Length (LU) | 22 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Finishing |
| Depth of Cut Maximum (APMX) | 22 mm | Tool Type | Single End |
| Overall Length (OAL) | 70 mm | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.3543″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5959T |
| End Shape | Square | Trade Name | SOLID MASTER |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.156
