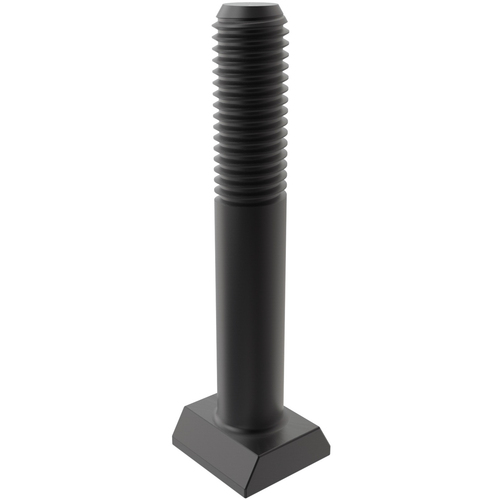

5/8″-11 × 3 3/4″ Dovetail Bolt
| Type | Dovetail Bolt | Material Grade | 4140 |
| Thread Size | 5/8″-11 | Bolt Length | 3-3/4″ |
| Head Height | 3/8″ | Top Dovetail Width | 3/4″ |
| Head Length | 1-1/8″ | Bottom Dovetail Width | 1-1/16″ |
| Material | Steel | Thread Length | 1-1/2″ |
Product Features
| Remarks | •Dovetail Bolts can be used for clamping guide members on the front of press brakes. •Material: 4140 Forging (140,000 PSI) Tensile. •Finish: Black Oxide. •Heat Treat: Rc 32-36. •Thread: 2A-UNC. •Available in FixturePro™ Design Software. | Country of Origin | USA |
Shipping Info
Package Length
4.30000
Package Width
1.12000
Package Height
1.06000
Package Weight
0.4
