5944 9/64 × 3/16 2FL SE

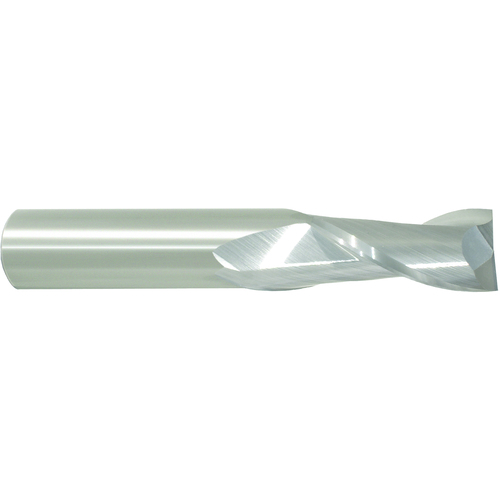

SQ End Mill; 9/64″ Dia. × 9/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 5944
| Cutting Diameter (DC) | 9/64″ | Usable Length (LU) | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | Single End |
| Overall Length (OAL) | 2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1406″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5944 |
| End Shape | Square | Trade Name | SOLID MASTER |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.032
