Shoulder Screws/Stripper Bolt Shim Assortment - Shortening
| Type | Shoulder Screws/Stripper Bolt Shim Assortment - Shortening | Sizes Diameter | 15 each thicknesses (0.005″, 0.015″, and 0.032″): 0.252″ I.D. × 0.366″ O.D.; 0.313″ I.D. × 0.424″ O.D.; 0.376″ I.D. × 0.557″ O.D.; 0.501″ I.D. × 0.738″ O.D.; 0.626″ I.D. × 0.870″ O.D.; and 0.751″ I.D. × 0.995″ O.D. |
| Screw Size | 1/4″ to 3/4″ | Number of Pieces | 270 |
Product Features

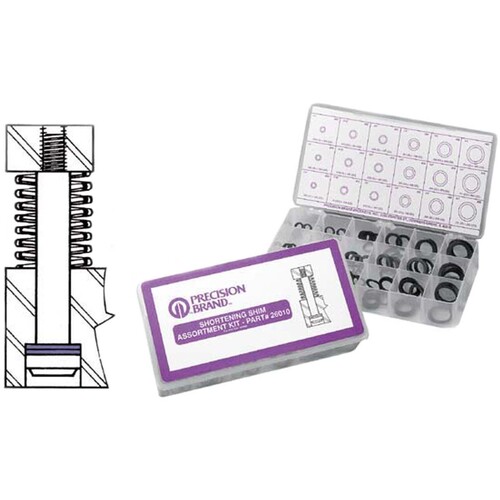

| Remarks | Shortening Shims are precision die cut to fit with close tolerances around the shoulder screw shank to fit under the screw head. Contains 3 thicknesses: 0.005″ from 1095 blue tempered spring steel and 0.015″ and 0.032″ from 1075 tempered spring steel. Fits six different shoulder screw sizes from 1/4″ to 3/4″ diameter. | Country of Origin | USA |
Shipping Info
Package Length
8.30000
Package Width
4.40000
Package Height
1.40000
Package Weight
0.562
