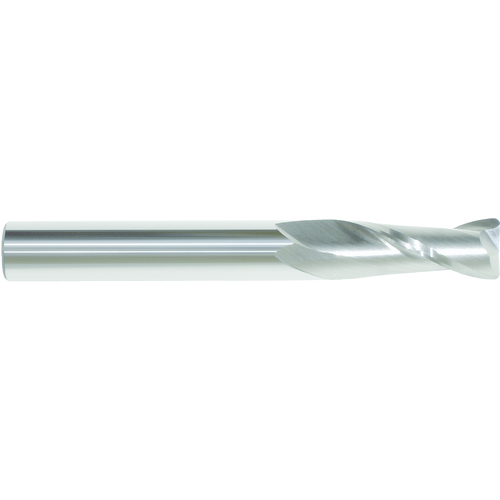

1/4″ × 1/4″ × 3/4″ × 2 1/2″ 0.0600″ C/R 2 Flute Single End Carbide Finishing End Mill-Uncoated Series/List #5967
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.06″ RE ; 0.06″ RE ; 2 FL ; 3/4″ LBS ; Carbide ; Uncoated ; Series 5944
| Cutting Diameter (DC) | 1/4″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Single End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5944 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Usable Length (LU) | 3/4″ | Trade Name | SOLID MASTER |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.065
