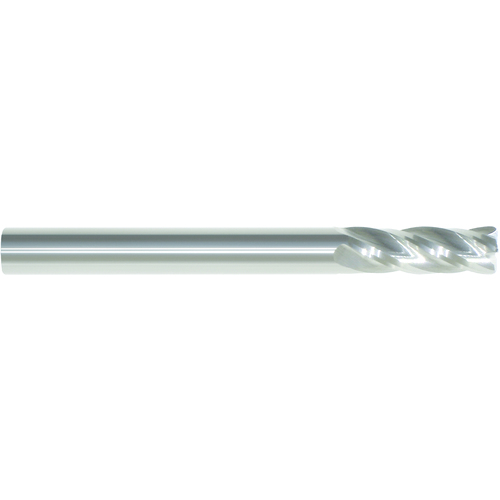

5968 3/4X3/4 CR .03 4F SE
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 0.03″ RE ; 4 FL ; 1-1/2″ LBS ; Carbide ; Uncoated ; Series 5943
| Cutting Diameter (DC) | 3/4″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Single End |
| Overall Length (OAL) | 4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5943 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 1-1/2″ | Trade Name | SOLID MASTER |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
5.00000
Package Width
.75000
Package Height
.75000
Package Weight
0.83
