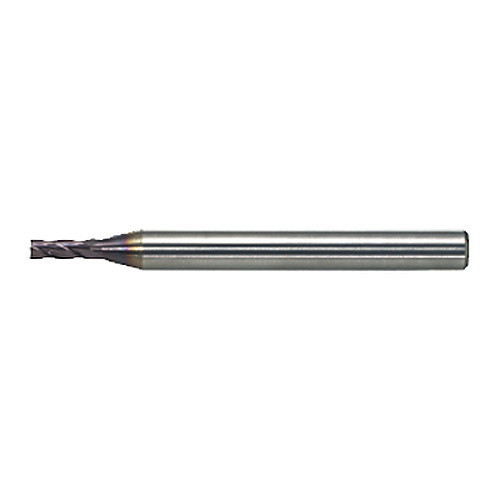

MS4MCD0250 CARBIDE
SQ End Mill; 2.5 mm Dia. × 6.3 mm LOC × 4 mm Shank Dia. × 40 mm OAL ; 4 FL ; TiAlN ; Series MS4MC
| Cutting Diameter (DC) | 2.5 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 6.3 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 40 mm | Length Group | Medium |
| Coating | TiAlN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | MS4MC |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
