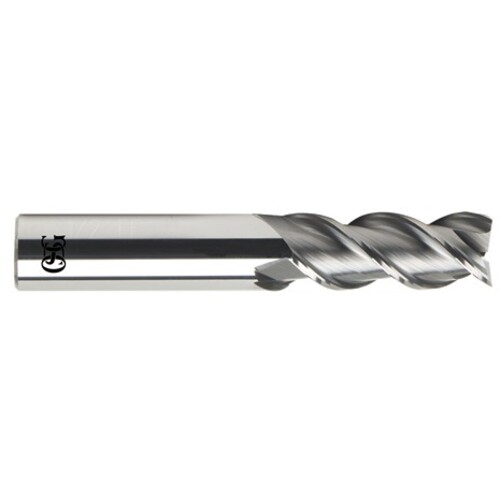

7/16″ Dia. × 7/16″ Shank × 1-1/4″ DOC × 2-3/4″ OAL, Carbide, Bright, 3 Flute, Square, Solid End Mill
SQ End Mill; 7/16″ Dia. × 1-1/4″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 2042
| Cutting Diameter (DC) | 7/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2-3/4″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.4375″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 2042 |
| Shank Type | Round |
Product Features
| Remarks | •Carbide End Mill for Aluminum, Aluminum Alloys and Copper Alloys •Regular Length •3 Flute •Bright Finish | Country of Origin | USA |
Shipping Info
Package Length
3.40000
Package Width
.75000
Package Weight
0.175
