3/32 4FL SE STUB SC END

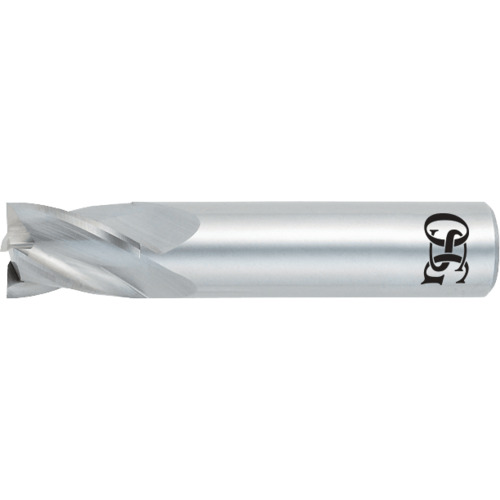

SQ End Mill; 3/32″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; 3/16″ LBS ; Carbide ; AlTiN ; Series 414
| Cutting Diameter (DC) | 3/32″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 3/16″ |
| Depth of Cut Maximum (APMX) | 3/16″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 1-1/2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Style | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.0938″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 414 |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Stub Length 4-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
2.70000
Package Width
.50000
Package Weight
0.015
