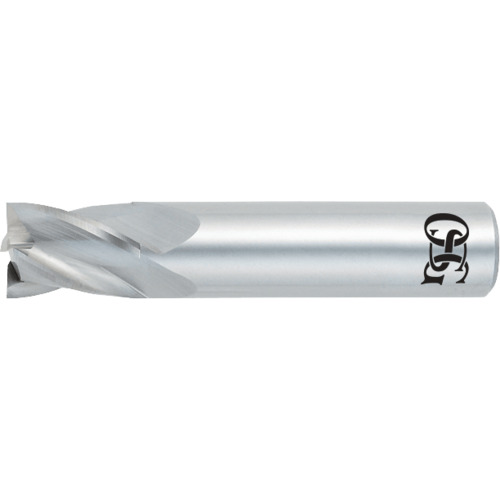

7/16″ Dia. × 7/16″ Shank × 5/8″ DOC × 2-1/2″ OAL, Carbide, Uncoated, 4 Flute, Square, Solid End Mill
Square End Mill; 7/16″ Dia. × 5/8″ LOC × 7/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 414
| Cutting Diameter (DC) | 7/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2-1/2″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.4375″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 414 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Stub Length 4-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
3.45000
Package Width
.75000
Package Weight
0.195
