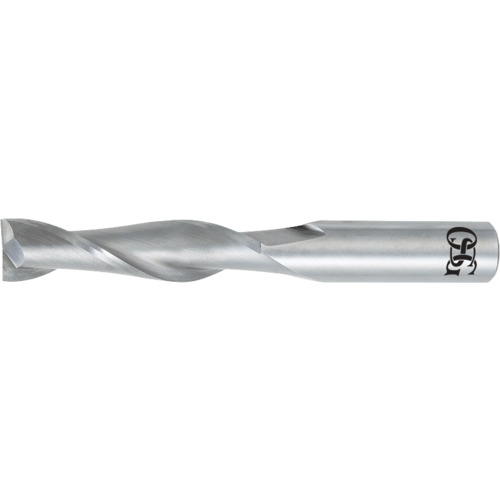

3/16″ Dia. × 3/16″ Shank × 3/4″ DOC × 2-1/2″ OAL, Carbide, Uncoated, 2 Flute, Square, Solid End Mill
SQ End Mill; 3/16″ Dia. × 3/4″ LOC × 3/16″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 462
| Cutting Diameter (DC) | 3/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2-1/2″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 462 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Long Length 2-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
.40000
Package Weight
0.05
