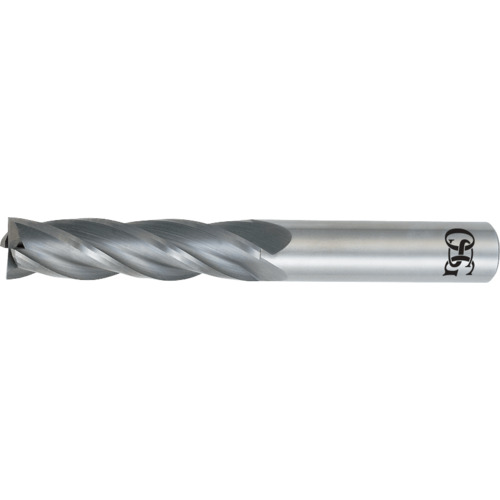

5/8″ Dia. × 5/8″ Shank × 2-1/4″ DOC × 5″ OAL, Carbide, Uncoated, 4 Flute, Square, Solid End Mill
SQ End Mill; 5/8″ Dia. × 2-1/4″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 464
| Cutting Diameter (DC) | 5/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 2-1/4″ |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 5″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 464 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Long Length 4-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
5.65000
Package Width
.85000
Package Height
.75000
Package Weight
0.69
