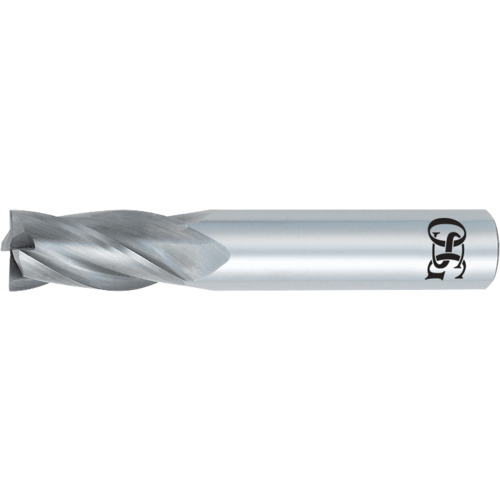

1/32″ Dia. × 1/8″ Shank × 1/8″ DOC × 1-1/2″ OAL, Carbide, Bright, 4 Flute, Square, Solid End Mill
SQ End Mill; 1/32″ Dia. × 1/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; 1/8″ LBS ; Carbide ; Uncoated ; Series 404
| Cutting Diameter (DC) | 1/32″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1/8″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 1-1/2″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0313″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 404 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Regular Length 4-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
2.65000
Package Width
.50000
Package Weight
0.02
