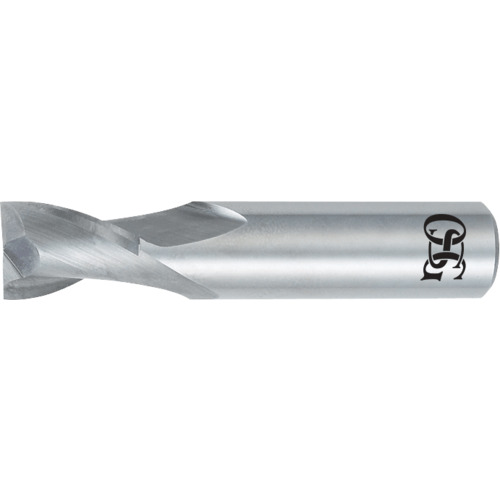

3/8″ Dia. × 3/8″ Shank × 5/8″ DOC × 2″ OAL, Carbide, Uncoated, 2 Flute, Square, Solid End Mill
Square End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 412
| Cutting Diameter (DC) | 3/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 412 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Stub Length 2-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
3.45000
Package Width
.55000
Package Weight
0.1
