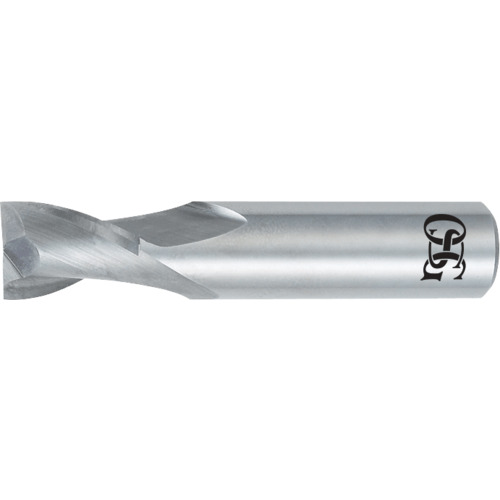

5/16″ Dia. × 5/16″ Shank × 1/2″ DOC × 2″ OAL, Carbide, Uncoated, 2 Flute, Square, Solid End Mill
SQ End Mill; 5/16″ Dia. × 1/2″ LOC × 5/16″ Shank Dia. × 2″ OAL ; 2 FL ; 1/2″ LBS ; Carbide ; Uncoated ; Series 412
| Cutting Diameter (DC) | 5/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 412 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Stub Length 2-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
3.35000
Package Width
.55000
Package Weight
0.07
