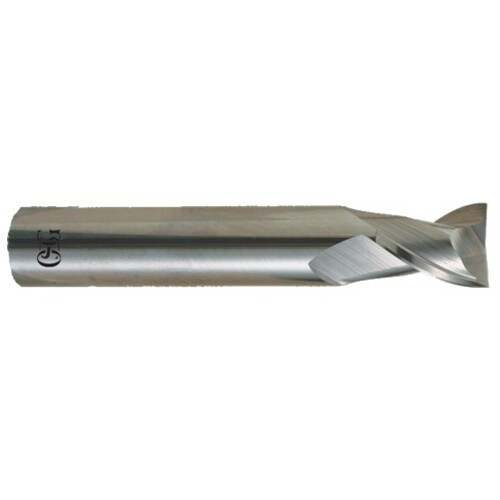

1/8″ Dia. × 1/8″ Shank × 1/4″ DOC × 1-1/2″ OAL, HSSCo, Bright, 2 Flute, Square, Solid End Mill
SQ End Mill; 1/8″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; 1/4″ LBS ; HSSCo ; Uncoated ; Series 2021
| Cutting Diameter (DC) | 1/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Tool Type | Single-End |
| Overall Length (OAL) | 1-1/2″ | Style | Square |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 2021 |
| Shank Type | Round |
Product Features
| Remarks | •Carbide End Mill for Aluminum, Aluminum Alloys and Copper Alloys •Stub Length •2 Flute •Bright Finish | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
.60000
Package Weight
0.01
