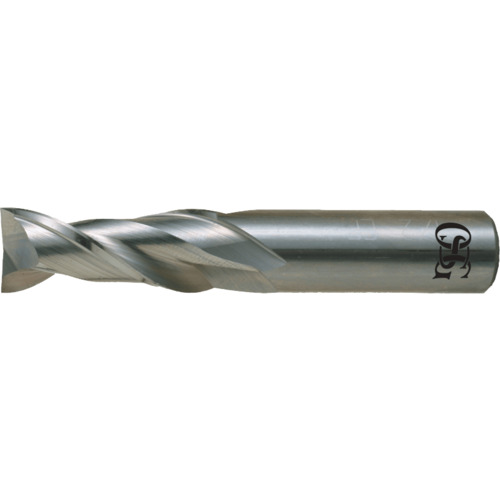

3/16″ Dia. × 3/16″ Shank × 9/16″ DOC × 2″ OAL, Carbide, Bright, 2 Flute, Square, Solid End Mill
SQ End Mill; 3/16″ Dia. × 9/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 0.02″ RE ; 2 FL ; Carbide ; Uncoated ; Series 2022
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 2022 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| End Shape | Corner Radius |
Product Features
| Remarks | •Carbide End Mill for Aluminum, Aluminum Alloys and Copper Alloys •Regular Length •2 Flute -List 2021/2022 •Bright Finish | Country of Origin | USA |
Shipping Info
Package Length
2.70000
Package Width
.55000
Package Weight
0.032
