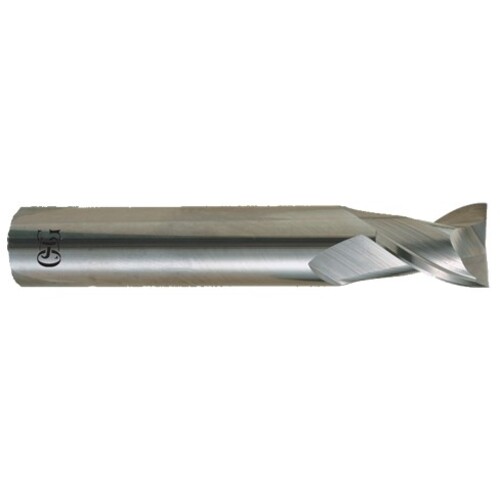

1/4″ Dia. × 1/4″ Shank × 3/8″ DOC × 2-1/2″ OAL, Carbide, Bright, 2 Flute, Square, Solid End Mill
Corner Radius End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Bright ; Series 2021
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2-1/2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | Bright | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 2021 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| End Shape | Corner Radius |
Product Features
| Remarks | •Carbide End Mill for Aluminum, Aluminum Alloys and Copper Alloys •Stub Length •2 Flute •Bright Finish | Country of Origin | JP |
Shipping Info
Package Length
3.10000
Package Width
.55000
Package Weight
0.07
