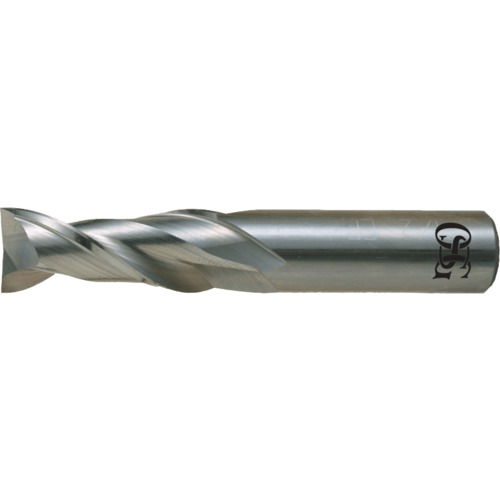

3/8″ Dia. × 3/8″ Shank × 1″ DOC × 2-1/2″ OAL, Carbide, Bright, 2 Flute, Square, Solid End Mill
SQ End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 2022
| Cutting Diameter (DC) | 3/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2-1/2″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 2022 |
| Shank Type | Round |
Product Features
| Remarks | •Carbide End Mill for Aluminum, Aluminum Alloys and Copper Alloys •Regular Length •2 Flute -List 2021/2022 •Bright Finish | Country of Origin | USA |
Shipping Info
Package Length
3.40000
Package Width
.75000
Package Weight
0.14
