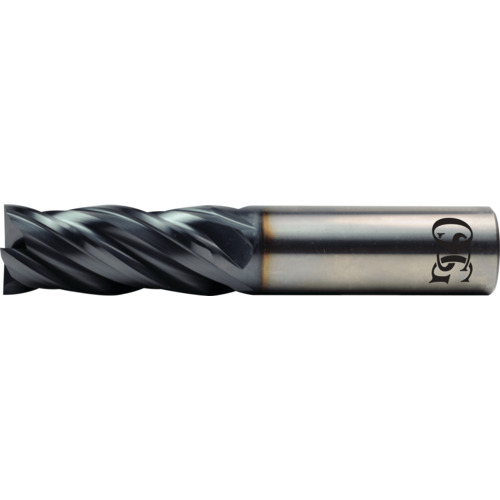

CARBIDE 1X2 4F VG SQ
SQ End Mill; 1″ Dia. × 2″ LOC × 1″ Shank Dia. × 5″ OAL ; 4 FL ; 2″ LBS ; Carbide ; AlTiN ; Series VG441
| Cutting Diameter (DC) | 1″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 2″ | Usable Length (LU) | 2″ |
| Overall Length (OAL) | 5″ | Tool Type | Single-End|High Performance |
| Cutting Edge Material | Carbide | Style | Square |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | VG441 |
Product Features
| Remarks | •High Performance Carbide •Center Cutting •TiALN Coating •Square End •4 Flute •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels, Stainless Steels, Hardened Steels up to 45 HrC and High Heat Alloys | Country of Origin | USA |
Shipping Info
Package Length
5.95000
Package Width
1.45000
Package Height
1.35000
Package Weight
1.67
