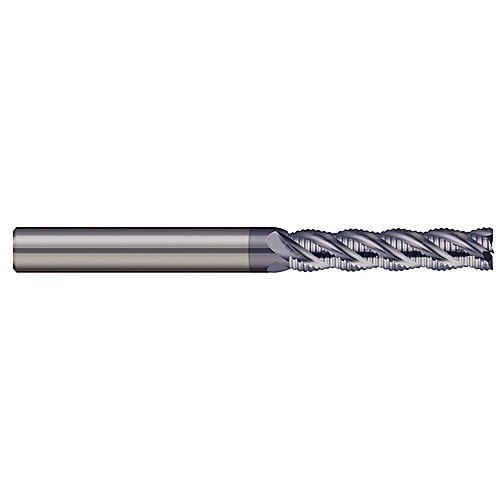

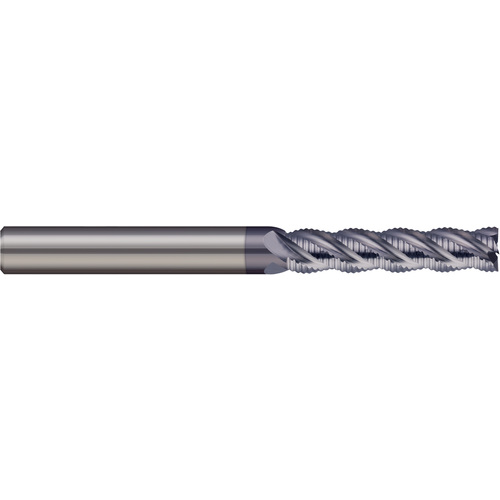

SHR-375-4X BOR TL
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; 7/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/8″ | Applicable Material | | Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 7/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Length Group | 2.4D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square | Trade Name | SHREDDER |
| Usable Length (LU) | 7/8″ |
Product Features
| Remarks | •Micro 100 - The Shredder - Roughing End Mill •These 38 degree helix mills are designed to generate the maximum metal removal rates in most applications •Superior versatility •Heavy duty core construction | Country of Origin | USA |
Shipping Info
Package Length
2.80000
Package Width
.50000
Package Weight
0.13
