CARBIDE 1/2X1-1/2 4FL VG

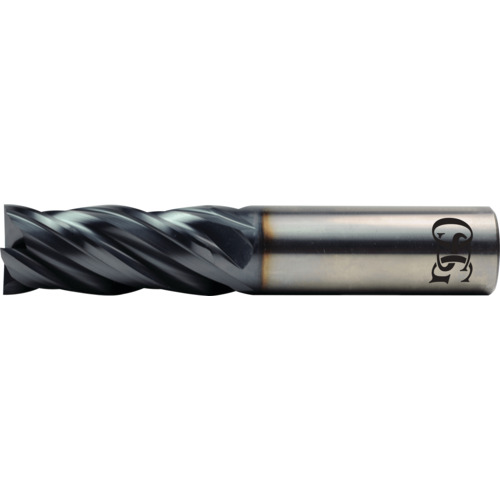

SQ End Mill; 1/2″ Dia. × 1-1/2″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series VG441
| Cutting Diameter (DC) | 1/2″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Single-End|High Performance |
| Overall Length (OAL) | 4″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | VG441 |
| Shank Type | Round |
Product Features
| Remarks | •High Performance Carbide •Center Cutting •TiALN Coating •Square End •4 Flute •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels, Stainless Steels, Hardened Steels up to 45 HrC and High Heat Alloys | Country of Origin | USA |
Shipping Info
Package Length
4.40000
Package Width
.75000
Package Weight
0.365
