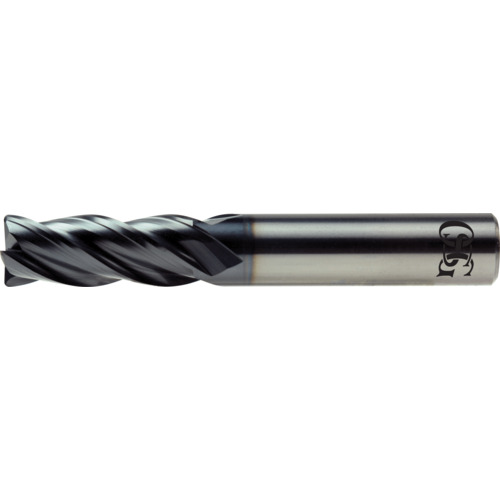

CARB 1/2X1-1/4 4FL VG S/E
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 0.03″ RE ; 0.03″ RE ; 4 FL ; Carbide ; AlTiN ; Series VG434
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Single-End|High Performance |
| Overall Length (OAL) | 3-1/2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | VG434 |
| Shank Type | Weldon | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Remarks | •High Performance Carbide •Center Cutting •TiALN Coating •Corner Radius •4 Flute •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels, Stainless Steels, Hardened Steels up to 45 HrC and High Heat Alloys | Country of Origin | USA |
Shipping Info
Package Length
4.40000
Package Width
.75000
Package Weight
0.315
