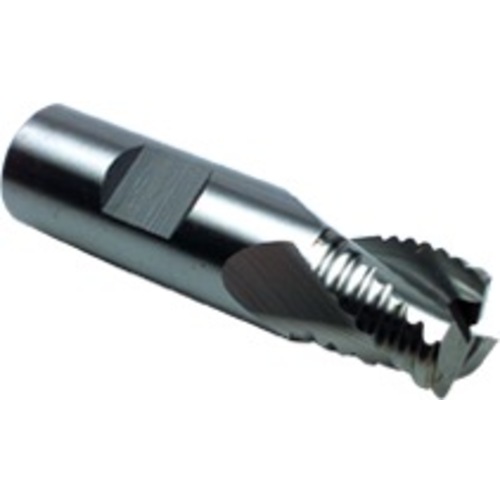

5/8″ Dia-2-3/4″ OAL-TiCN M42-Roughing SE EM-3 FL
SQ End Mill; 5/8″ Dia. × 5/8″ LOC × 5/8″ Shank Dia. × 2-3/4″ OAL ; 3 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 5/8″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 5/8″ | Application | Roughing |
| Overall Length (OAL) | 2-3/4″ | Length Group | Stub |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •M-42 Cobalt - Coarse Tooth–3-Flute •Stub Length Roughing End Mills •For general purpose milling of soft to medium hard materials •Suitable for heavier feed rates •TiN coating improves tool life and allows elevated feeds and speeds •TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.284
