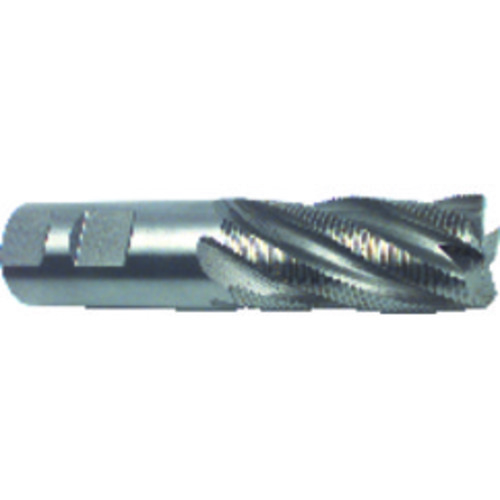

4613G 1-1/4″ × 1-1/4″
SQ End Mill; 1-1/4″ Dia. × 2″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 6 FL ; 2″ LBS ; HSSCo ; TiN ; Series 4613G
| Cutting Diameter (DC) | 1-1/4″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 2″ | Length Group | Regular |
| Overall Length (OAL) | 4-1/2″ | Flute Type | Fine Pitch |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Roughing |
| Flute Count (NOF) | 6 | Decimal Equivalent | 1.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4613G |
| Usable Length (LU) | 2″ |
Product Features
| Remarks | •M-42 8% Cobalt Fine Tooth Roughing End Mills •Center Cutting 30° Helix •TiCN Coating • TiCN coating has the same lubricity as TiN but is more than 30% harder • TiCN Coating is ideal for operating at aggressive feeds and speeds and for cutting extremely abrasive and difficult-to-cut materials. •Fine tooth spacing gives 30% better tool life •Pressure of cut is distributed over many teeth •Less friction/less wear - cutting speeds & feeds remain the same as conventional end mills •Better finish •Breakage and cracks are eliminated | Country of Origin | USA |
Shipping Info
Package Length
7.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.313
