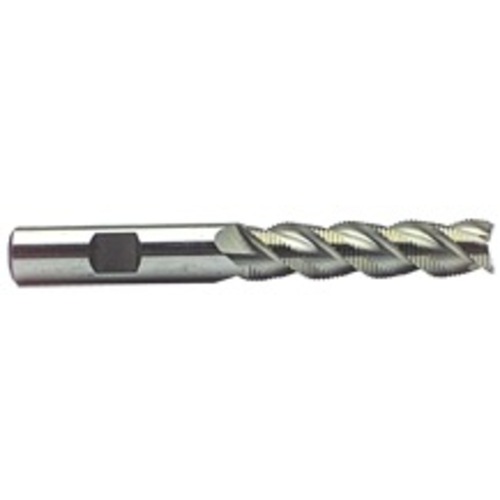

3/8″ Dia-2-1/2″ OAL-Uncoat M42-Roughing SE EM-3 FL
SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; 3/4″ LBS ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 3/8″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ | Usable Length (LU) | 3/4″ |
| Overall Length (OAL) | 2-1/2″ | Application | Roughing |
| Cutting Edge Material | HSSCo | Length Group | Standard |
| Coating | Uncoated | Flute Type | Fine |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.375″ |
Product Features
| Remarks | •M-42 Cobalt - Fine Tooth–45° High Helix–3 Flute •Center Cutting Roughing End Mills •Use for milling operations in hard materials •3-flute design and high shear angle aids in chip removal and produces better finishes than coarse tooth design | Country of Origin | S.Korea |
Shipping Info
Package Length
2.80000
Package Width
.40000
Package Weight
0.05
