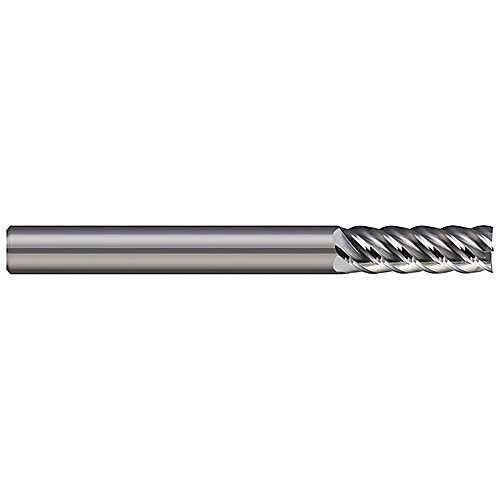

1/4″ Dia-2-1/2″ OAL-Uncoated CBD-HP EM-5 FL
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Length Group | 3D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Remarks | •High Tech End Mills •5 Flute - Center Cutting–45 Helix •These 5 flute high tech end mills feature 45 degree helix for finishing, roughing, and slotting in medium to hard steels, stainless steels, and high temperature alloys • Higher metal removal rates as well as excellent finishes are achieved with these 5 flute end mills •45 degree helix diminishes chatter when machining in corners of parts | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.028
