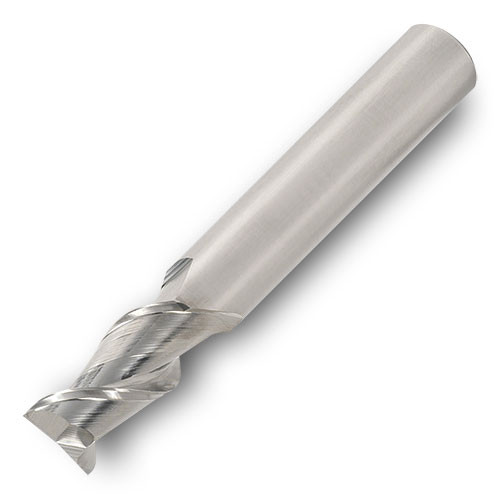

46J-1015S1RD45 IN05S
SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4-1/2″ OAL ; 3 FL
| Cutting Diameter (DC) | 1″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0.008″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | IN05S |
| Overall Length (OAL) | 4-1/2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Flute Count (NOF) | 3 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.008 R |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Corner radius Aluminum applications | Country of Origin | Usa |
Shipping Info
Package Weight
1.477
