46D-7515S7RD00 IN2005

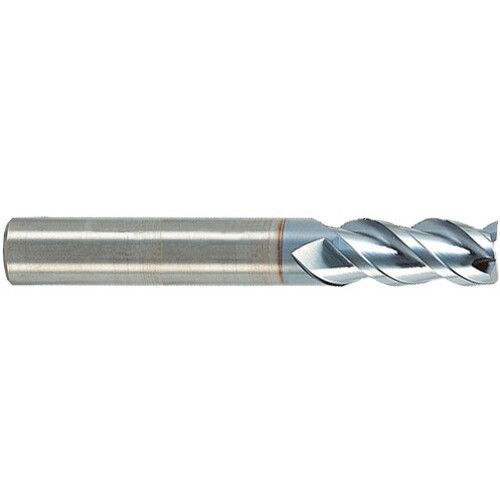

SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; TiAlN
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | IN2005 |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Steel |
| Coating | TiAlN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | Sharp |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
345
