46J-2505R6RD25 IN05S

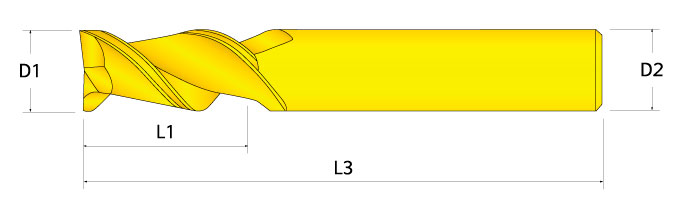

SQ End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 3 FL
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Cast Iron | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | IN05S |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Steel |
| Coating | AlTiN | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.008 R |
| End Shape | Square |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.09
