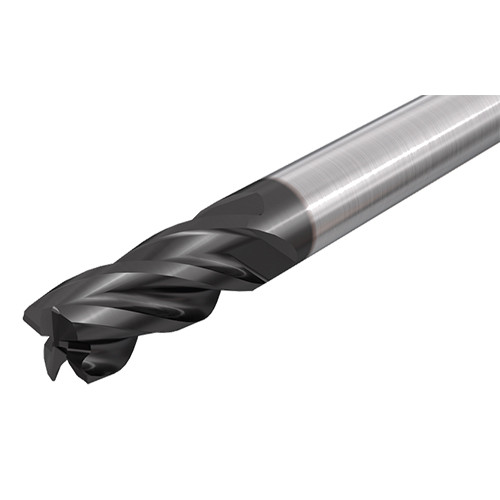

ECK-H4M 12-24W12CFR0.6-83 IC900
SQ End Mill; 12 mm Dia. × 24 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 0.6 mm RE ; 4 FL ; 24 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 24 mm | Grade | IC900 |
| Overall Length (OAL) | 83 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 36 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 24 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter damping with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.273
