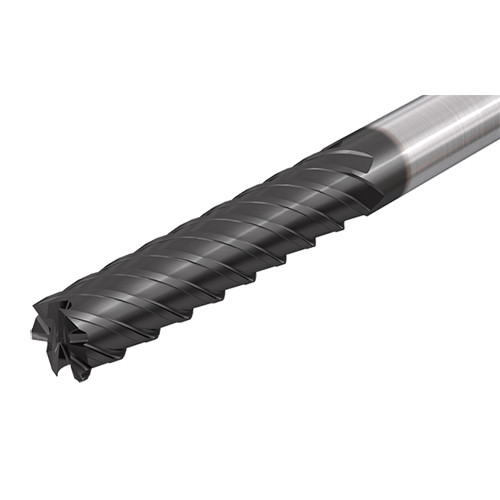

EC-B6 200-76C20-140 IC903
SQ End Mill; 20 mm Dia. × 76 mm LOC × 20 mm Shank Dia. × 140 mm OAL ; 0 mm RE ; 6 FL ; 76 mm LBS ; Carbide ; AlTiN

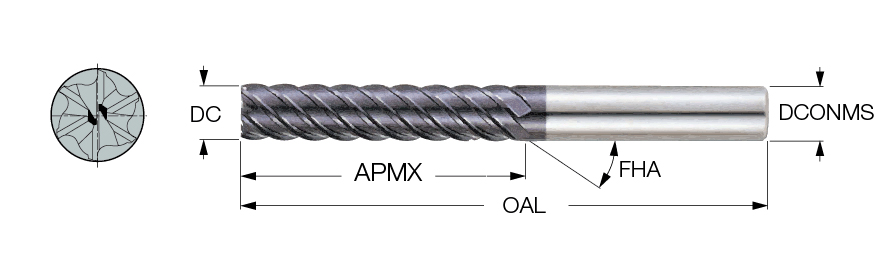

| Cutting Diameter (DC) | 20 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Ramping Angle Maximum (RMPX) | 0 Degrees |
| Depth of Cut Maximum (APMX) | 76 mm | Grade | IC903 |
| Overall Length (OAL) | 140 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 76 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Shouldering | |
Product Features
| Family Description | 6 flute, 45° helix extra long solid carbide endmills. Used for finishing hard materials up to 65 HRC. | Country of Origin | Israel |
Shipping Info
Package Weight
1.355
