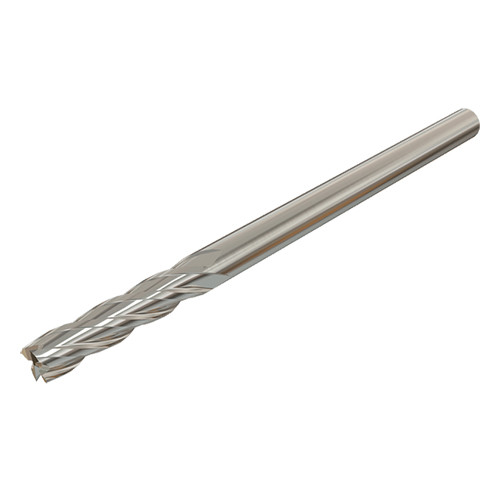

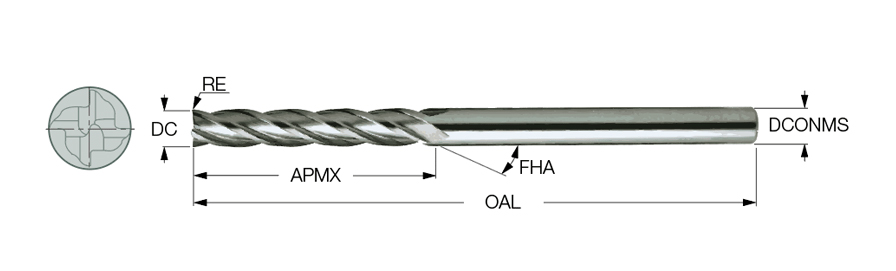

EC-A4 16-65C16E150 IC900
SQ End Mill; 16 mm Dia. × 65 mm LOC × 16 mm Shank Dia. × 150 mm OAL ; 0 mm RE ; 4 FL ; 65 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 16 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 65 mm | Grade | IC900 |
| Overall Length (OAL) | 150 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 65 mm | Cutting Diameter Tolerance | h10 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | Economical type 4 flute, 30° helix, center cutting, medium & extra long solid carbide endmills | Country of Origin | Israel |
Shipping Info
Package Weight
0.921
