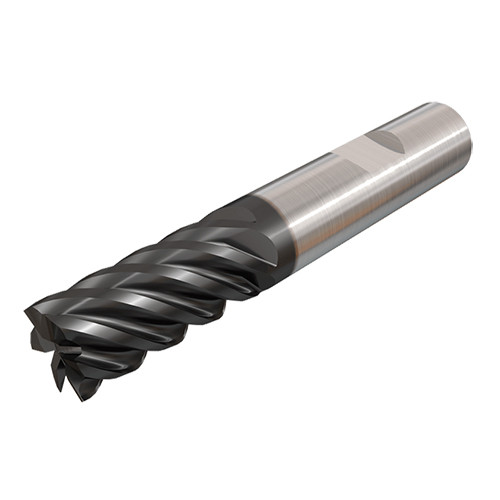

ECH060B16-6C06 IC903
SQ End Mill; 6 mm Dia. × 16 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0 mm RE ; 6 FL ; 16 mm LBS ; Carbide ; AlTiN

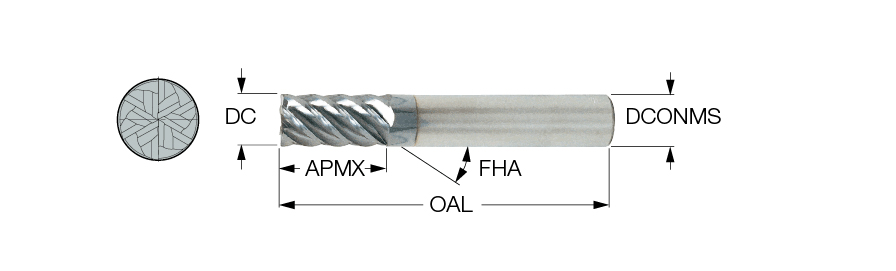

| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 16 mm | Grade | IC903 |
| Overall Length (OAL) | 57 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.07 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 16 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 6 flute, 45° helix, medium length, solid carbide endmills. Used for finishing hard materials up to 65 HRC. Use IC903 for hard steel and high temperature alloys and IC900 for all other applications. | Country of Origin | Israel |
| Remarks | Use IC903 for machining hardened steel up to 65 HRC |
Shipping Info
Package Weight
0.052
