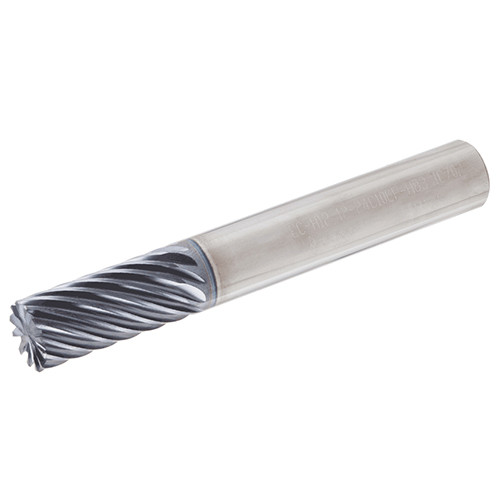

EC-H10 10-20C10CF-H72 IC902
SQ End Mill; 10 mm Dia. × 20 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 10 FL ; 20 mm LBS ; Carbide ; AlTiN

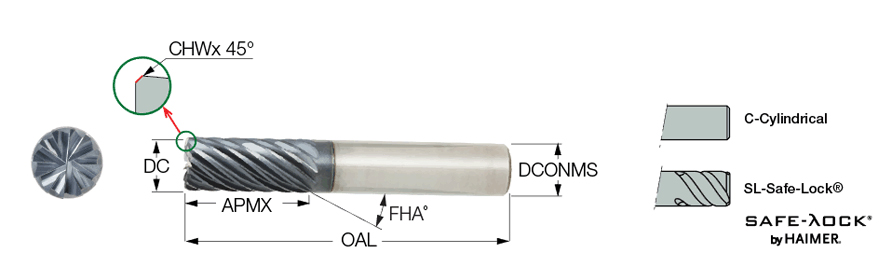

| Cutting Diameter (DC) | 10 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Ramping Angle Maximum (RMPX) | 0 Degrees |
| Depth of Cut Maximum (APMX) | 20 mm | Grade | IC902 |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 10 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 20 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Shouldering | |
Product Features
| Family Description | 6-20 flute endmills with different helix and variable pitch, for CHATTERFREE high speed / trochoidal milling and finishing operations. | Country of Origin | Israel |
| Remarks | Enables processing at a radial width of cut (AE) of up to 0.06xDC |
Shipping Info
Package Weight
0.187
