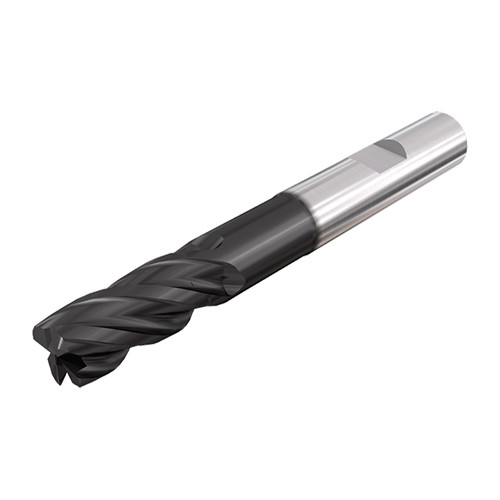

EC-H4M 25-50W25CFR1.2-121
SQ End Mill; 25 mm Dia. × 50 mm LOC × 25 mm Shank Dia. × 121 mm OAL ; 1.2 mm RE ; 4 FL ; Carbide ; AlTiN

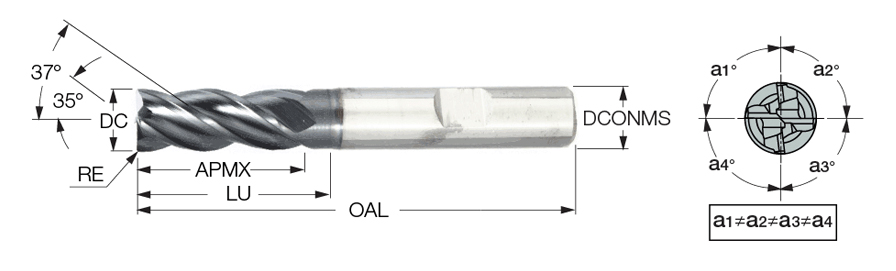

| Cutting Diameter (DC) | 25 mm | Corner Radius (RE) | 1.2 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 50 mm | Grade | IC900 |
| Overall Length (OAL) | 121 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 4 flute long endmills with different helix (35° & 37°) and variable pitch for chatter dampening . Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
1.574
