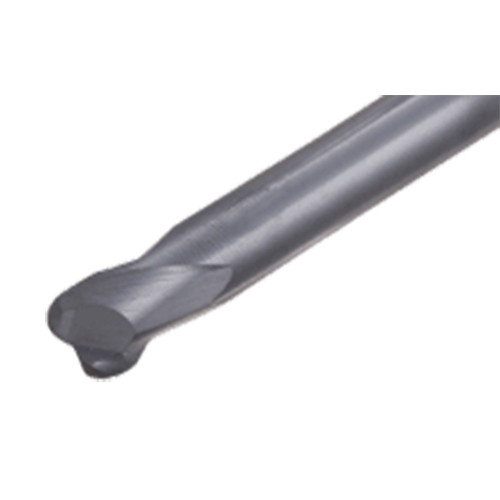

ETR-A2 02-2/08C06R.5M80 IC900
SQ End Mill; 2 mm Dia. × 2 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; 0.5 mm RE ; 2 FL ; 8 mm LBS ; Carbide ; AlTiN

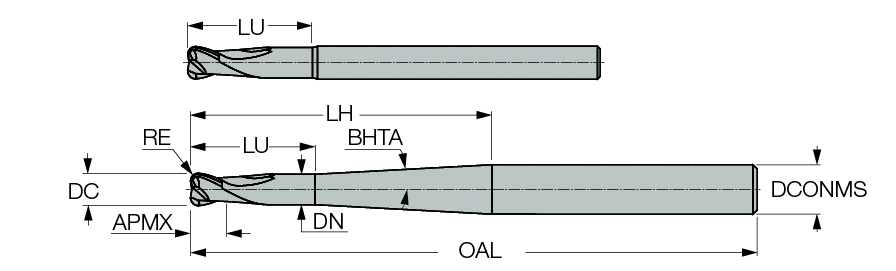

| Cutting Diameter (DC) | 2 mm | Grade | IC900 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Neck Diameter (DN) | 1.9 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Head Length (LH) | 40 mm |
| Overall Length (OAL) | 80 mm | Body Half Taper Angle (BHTA) | 3.6 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Toroidal endmills |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.03 mm/tooth |
| Flute Count (NOF) | 2 | Minimum Feed per Tooth (fz(min)) | 0.01 mm/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 8 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | Undercutting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0.5 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
Product Features
| Family Description | 2 flute toroidal endmills | Country of Origin | Israel |
Shipping Info
Package Weight
0.059
