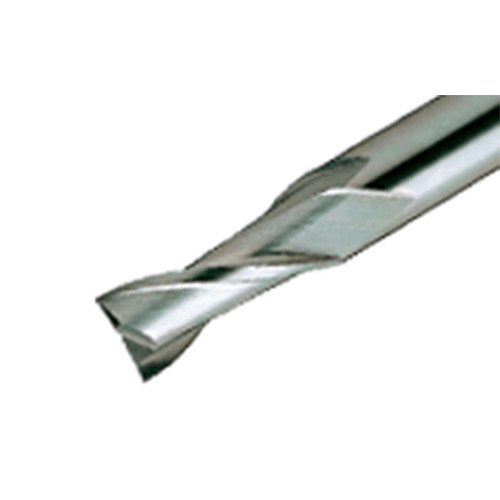

EC-A2 045-05W06E54 IC08
SQ End Mill; 4.5 mm Dia. × 5 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 2 FL ; 5 mm LBS ; Carbide ; Uncoated

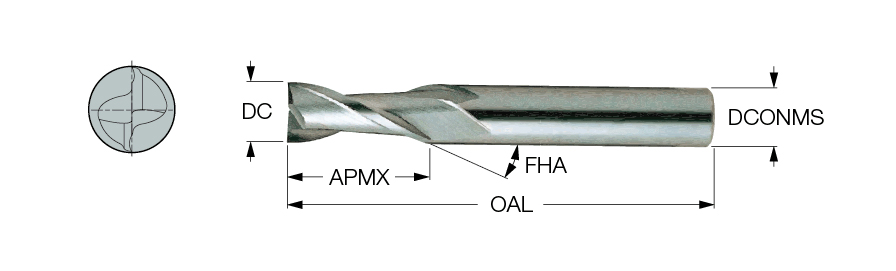

| Cutting Diameter (DC) | 4.5 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 5 mm | Neck Diameter (DN) | 4.5 mm |
| Overall Length (OAL) | 54 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.05 mm/tooth |
| Flute Count (NOF) | 2 | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Square | Measurement Type | Metric |
| Usable Length (LU) | 5 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h10 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Economical type 2 flute, 30° helix center cutting, short, medium, and extra long length solid carbide endmills. | Country of Origin | China |
Shipping Info
Package Weight
0.046
