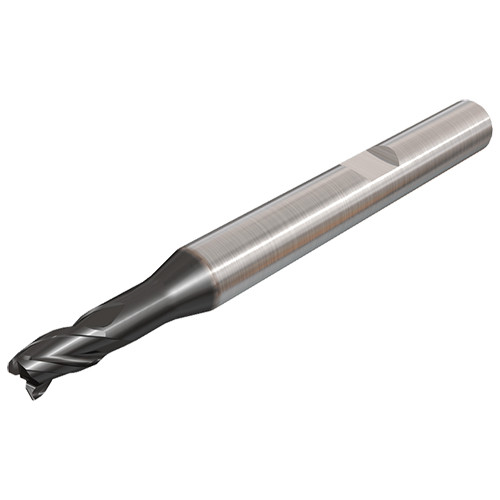

ECCS090E10-3W10-72 IC900
SQ End Mill; 9 mm Dia. × 10 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 3 FL ; 22 mm LBS ; Carbide ; AlTiN

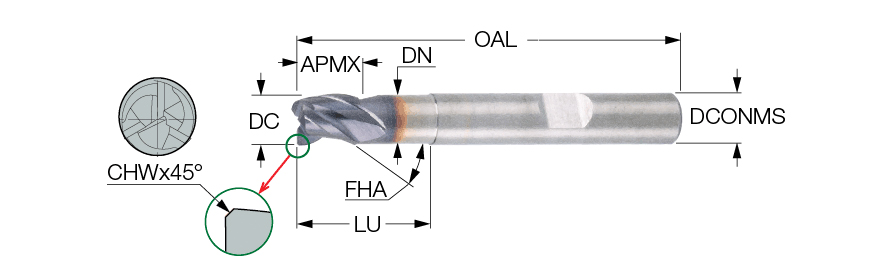

| Cutting Diameter (DC) | 9 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 10 mm | Neck Diameter (DN) | 8.6 mm |
| Overall Length (OAL) | 72 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Chamfer | Measurement Type | Metric |
| Usable Length (LU) | 22 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Chamfer Width (CHW) | 0.15 mm |
Product Features
| Family Description | 3 flute, 38° helix short solid carbide slot / drill endmills with 3xd relieved necks and chamfered corners. | Country of Origin | Israel |
Shipping Info
Package Weight
0.163
