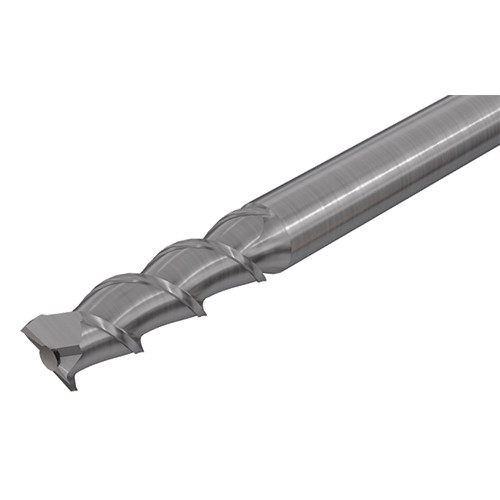

ECA200F38-2C20 IC08
SQ End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 0 mm RE ; 2 FL ; 38 mm LBS ; Carbide ; Uncoated

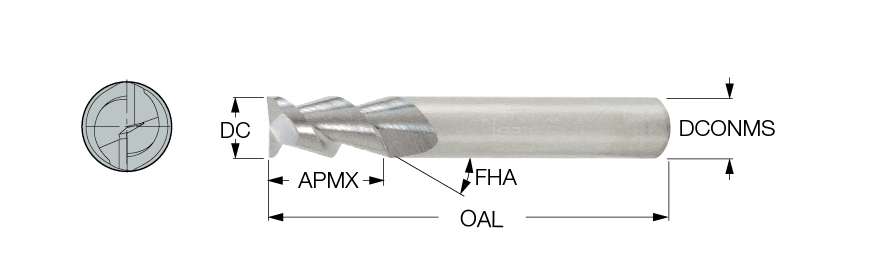

| Cutting Diameter (DC) | 20 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 38 mm | Grade | IC08 |
| Overall Length (OAL) | 104 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 55 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 38 mm | Cutting Diameter Tolerance | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 2 flute, 55° helix medium length solid carbide endmills. Used for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.877
