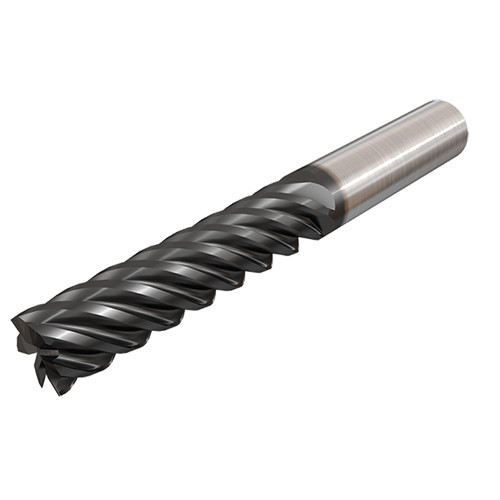

ECXL100B60-4C10 IC900
SQ End Mill; 10 mm Dia. × 60 mm LOC × 10 mm Shank Dia. × 112 mm OAL ; 0 mm RE ; 4 FL ; 60 mm LBS ; Carbide ; AlTiN

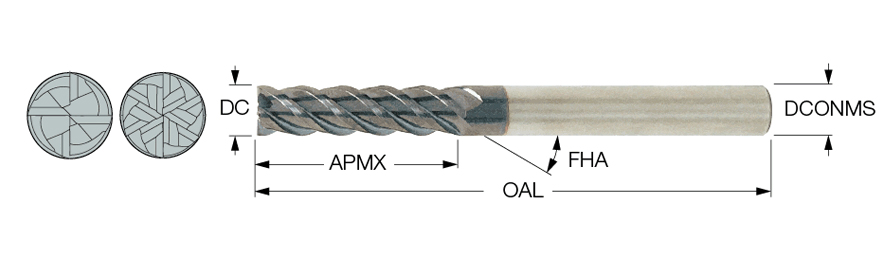

| Cutting Diameter (DC) | 10 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 60 mm | Grade | IC900 |
| Overall Length (OAL) | 112 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 60 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Shouldering | |
Product Features
| Family Description | 4 & 6 flute, 45° helix extra long solid carbide endmills. | Country of Origin | Israel |
| Remarks | Smooth cutting in extra long depth. |
Shipping Info
Package Weight
0.267
